LED threaded spotlight, all-aluminum alloy chassis, fully silent design, equipped with high-quality optical lens system, constant voltage and constant current drive, stable color temperature and color rendering, good linearity without jitter, and no change during dimming. Applicable venues: multi-functional conference halls, studios, theaters.



Optical parameters:

Light source: single 100W COB LED module

Color temperature: 3200K/5600K optional

Average lifespan: 50000 hours

Color rendering index: Ra≥95

Light flux: 7400Im

Beam angle: 15°~50° electric focusing

Lens: threaded lens



Electrical parameters:

Input voltage: AC100-240V, 50/60Hz

Rated power: 110W power factor PF≥0.98

Drive current: 0.5A



Control System:

Dimming: 0-100% linear dimming, stroboscopic effect, 0-20 times/sec

Control protocol: standard DMX512 protocol RDM function

Channel mode: 1CH/2CH

Heat dissipation system: High thermal conductivity copper tube radiators are used, and heat is dissipated through natural air convection.

Control Interface: DMX512 interface (3-pin /optional 5-pin)

Daisy-chain Power Socket

Appearance specifications:

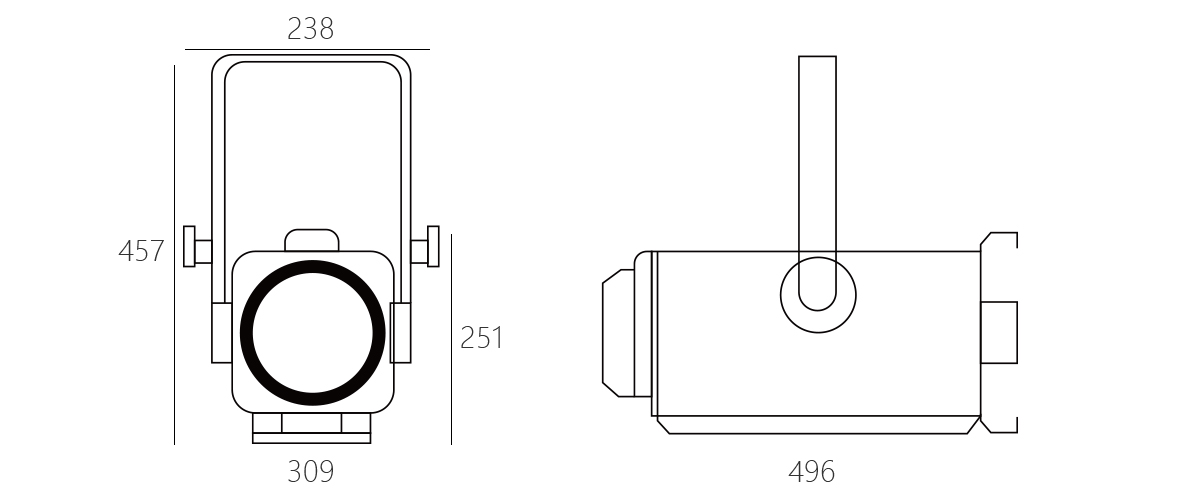

Size: 496×309×457mm

Weight: 8kg

Colour: Black

Shell: Aluminum die casting

Protection: IP20

Working environment: -30℃~45℃

Accessories: Power cord. Signal line. Insurance rope. Light hook. Barndoor.

Temperature monitoring: Built-in temperature sensor. Automatically adjust the power for over-temperature protection. Real-time view on the display panel
