BTS760Y LED Ultra Long Range Spotlight
The LED ultra-remote spotlights.All-aluminum die-cast chassis, featuring intelligent silent fan cooling and a high-quality optical lens system. It comes with a full-color gamut system for perfect color mixing, with color temperature linearly adjustable from 2700K to 10000K, achieving multi-purpose functionality in a single light.
Optical parameters:
Light source: single 700W module RGB+Cyan+Lime+Amber
Color temperature: 2700K-10000k a·djustable
Average lifespan: 50000 hours
Color rendering index: Ra≥95
Luminous flux: 45500lm
Beam angle: 9°~22° electric zoom
Lens: Fresnel lens
Electrical parameters:
Input voltage: AC100-240V, 50/60Hz
Rated power: 720W power factor PF≥0.98
Drive current: 3.27A
Control System:
Dimming: 0-100% linear dimming, stroboscopic effect 0-20 times/sec
Control protocol: DMX512, RDM
Channel mode: 8CH/10CH/12CH
Heat dissipation system: It adopts a high thermal conductivity copper tube radiator, and the intelligent monitoring technology of the silent fan automatically adjusts the rotation speed according to the temperature of the lamp.
Noise: 1 meter noise ≤ 35dB
Control Interface: DMX512 interface (3-pin, 5-pin) Daisy-chain Power Socket
Appearance specifications:
Size: 756×387×483mm
Weight: 15.5kg
Colour: Black
Shell: Aluminum die-casting
Protection: IP20
Working environment: -30℃~45℃
Accessories: Power cord. Signal line. Insurance rope. Light hook
Temperature monitoring: Built-in temperature sensor. Automatically adjust the power for over-temperature protection. Real-time view on the display panel.

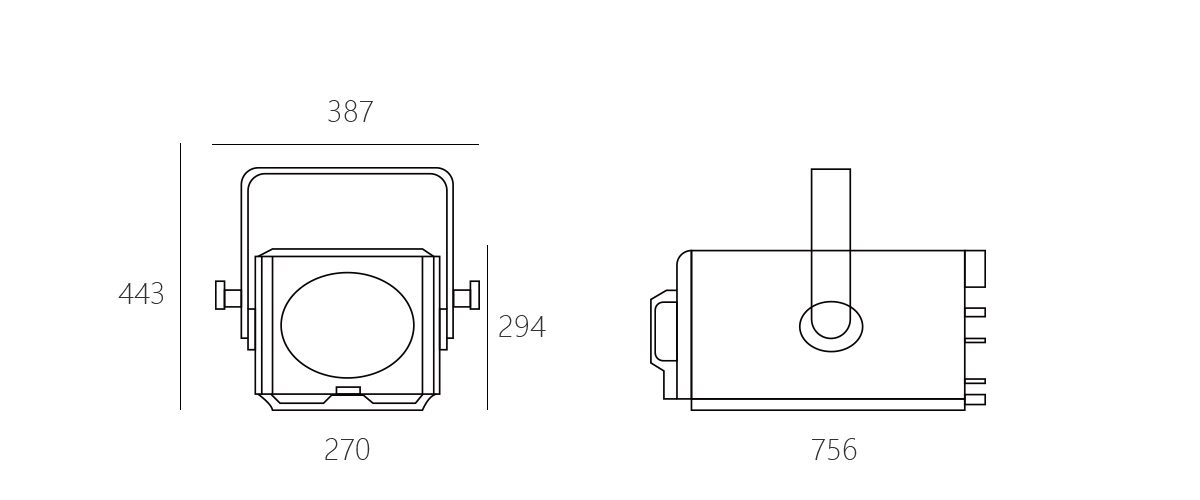

Size chart:
